Self Cleaning Automatic Filter

The ACP filters are automatic filters based on continuous backwashing driven by a hydraulic motor. They are totally independent from external power sources, as the driving oil is the same filtered oil.

These filters are able to control the Lube Oil Quality, removing from the system even the finest particles, as the carbon residues with a size of few microns, thus putting an end to the dangerous concentration of contaminants in the Lube Oil. The ACP filters can be designed to perfectly match the engines interface.

Download catalog

Contact us

Main features

No external energy required

AACP operates using only the Lube Oil’s energy. Use of filtered oil driven by an hydraulic motor for the continuous cleaning process eliminates the need for external power supply and compressed air.

No external energy required

AACP operates using only the Lube Oil’s energy. Use of filtered oil driven by an hydraulic motor for the continuous cleaning process eliminates the need for external power supply and compressed air.

No external energy required

AACP operates using only the Lube Oil’s energy. Use of filtered oil driven by an hydraulic motor for the continuous cleaning process eliminates the need for external power supply and compressed air.

No external energy required

AACP operates using only the Lube Oil’s energy. Use of filtered oil driven by an hydraulic motor for the continuous cleaning process eliminates the need for external power supply and compressed air.

Contact us

Operation priciple

Technical info

Application Area

Marine and Stationary Power, high & medium speed Diesel engines, SAE 30 & 40 lube oil systems

Application Area

Marine and Stationary Power, high & medium speed Diesel engines, SAE 30 & 40 lube oil systems

Application Area

Marine and Stationary Power, high & medium speed Diesel engines, SAE 30 & 40 lube oil systems

Application Area

Marine and Stationary Power, high & medium speed Diesel engines, SAE 30 & 40 lube oil systems

Application Area

Marine and Stationary Power, high & medium speed Diesel engines, SAE 30 & 40 lube oil systems

Application Area

Marine and Stationary Power, high & medium speed Diesel engines, SAE 30 & 40 lube oil systems

Backwash Treatment

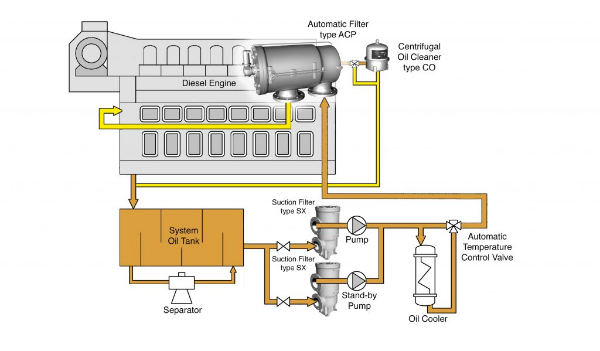

+ CO Centrifugal Oil Cleaner

The Filtrex solution, avoiding accumulation of impurities in the lube oil charge, has shown a remarkable improvement of the oil quality, with considerable benefits to the engine components and to all the lubrication circuit equipment.

By simple inspection of the oil cleaner, it is also allowed a very early detection of abnormal impurities reaching the filter (white metal, lints, water, etc.).

The ACP + CO is the perfect solution for the retrofit of the existing filters to reduce the spare parts cost and to have a excellent protection of the engine. Based on the several retrofits executed, the ROI starts from 5 months depending on the existing filters installed.

In case a Centrifugal Oil Cleaner is already installed downstream the lube oil pumps, the same size of Centrifugal Oil Cleaner can be installed in the ACP backwash line without any additional cost.

+ CO Centrifugal Oil Cleaner

The Filtrex solution, avoiding accumulation of impurities in the lube oil charge, has shown a remarkable improvement of the oil quality, with considerable benefits to the engine components and to all the lubrication circuit equipment.

By simple inspection of the oil cleaner, it is also allowed a very early detection of abnormal impurities reaching the filter (white metal, lints, water, etc.).

The ACP + CO is the perfect solution for the retrofit of the existing filters to reduce the spare parts cost and to have a excellent protection of the engine. Based on the several retrofits executed, the ROI starts from 5 months depending on the existing filters installed.

+ CO Centrifugal Oil Cleaner

The Filtrex solution, avoiding accumulation of impurities in the lube oil charge, has shown a remarkable improvement of the oil quality, with considerable benefits to the engine components and to all the lubrication circuit equipment.

By simple inspection of the oil cleaner, it is also allowed a very early detection of abnormal impurities reaching the filter (white metal, lints, water, etc.).

The ACP + CO is the perfect solution for the retrofit of the existing filters to reduce the spare parts cost and to have a excellent protection of the engine. Based on the several retrofits executed, the ROI starts from 5 months depending on the existing filters installed.

The Filtrex solution, avoiding accumulation of impurities in the lube oil charge, has shown a remarkable improvement of the oil quality, with considerable benefits to the engine components and to all the lubrication circuit equipment.

By simple inspection of the oil cleaner, it is also allowed a very early detection of abnormal impurities reaching the filter (white metal, lints, water, etc.).

The ACP + CO is the perfect solution for the retrofit of the existing filters to reduce the spare parts cost and to have a excellent protection of the engine. Based on the several retrofits executed, the ROI starts from 5 months depending on the existing filters installed.

In case a Centrifugal Oil Cleaner is already installed downstream the lube oil pumps, the same size of Centrifugal Oil Cleaner can be installed in the ACP backwash line without any additional cost.

+ CO Centrifugal Oil Cleaner

The Filtrex solution, avoiding accumulation of impurities in the lube oil charge, has shown a remarkable improvement of the oil quality, with considerable benefits to the engine components and to all the lubrication circuit equipment.

By simple inspection of the oil cleaner, it is also allowed a very early detection of abnormal impurities reaching the filter (white metal, lints, water, etc.).

The ACP + CO is the perfect solution for the retrofit of the existing filters to reduce the spare parts cost and to have a excellent protection of the engine. Based on the several retrofits executed, the ROI starts from 5 months depending on the existing filters installed.

+ CO Centrifugal Oil Cleaner

The Filtrex solution, avoiding accumulation of impurities in the lube oil charge, has shown a remarkable improvement of the oil quality, with considerable benefits to the engine components and to all the lubrication circuit equipment.

By simple inspection of the oil cleaner, it is also allowed a very early detection of abnormal impurities reaching the filter (white metal, lints, water, etc.).

The ACP + CO is the perfect solution for the retrofit of the existing filters to reduce the spare parts cost and to have a excellent protection of the engine. Based on the several retrofits executed, the ROI starts from 5 months depending on the existing filters installed.
